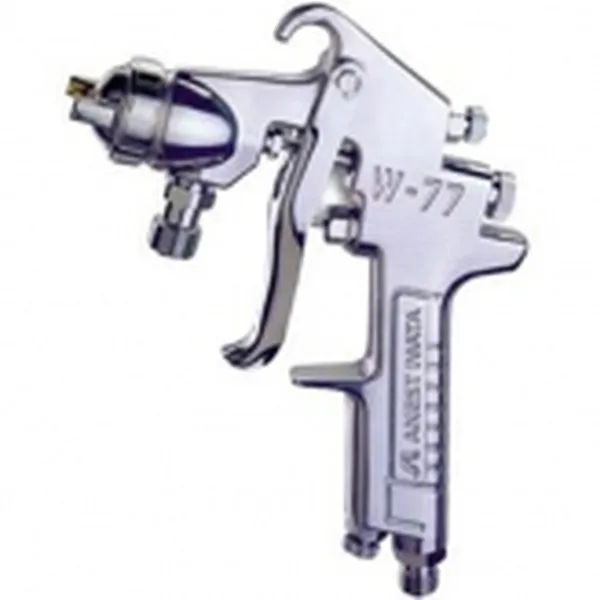

| Model | ||
| Item | W-77-0 | W-77-02 |
| Type of feed | Pressure | |
| Fluid nozzleorifice (  mm) |
1.2 | 1.2 |
| Spray distance (mm) |
250 | |
| Atomizing air pressure (MPa) |
0.34 | |
| Air consumption (L/min) |
430 | 420 |
| Fluid output (mL/min) |
480 | 480 |
| Pattern width (mm) |
445 | 400 |
| Required air compressor (kW) |
2.2  3.7 |
|
| Mass (g) |
550 | |
| Standard container or cup | Paint tanks diaphragm paint tanks |
|
| Model | |||
| Item | W-77-1S | W-77-11S | W-77-12S |
| Type of feed | Suction | ||
| Fluid nozzle orifice ( mm) |
1.5 | 1.5 | 1.5 |
| Spray distance (mm) |
250 | ||
| Atomizing air pressure (MPa) |
0.34 | ||
| Air consumption (L/min) |
180 | 290 | 370 |
| Fluid output (mL/min) |
255 | 255 | 255 |
| Pattern width (mm) |
210 | 260 | 230 |
| Required air compressor (kW) |
0.75 1.5 |
1.5 2.2 |
2.2 3.7 |
| Mass (g) |
550 | ||
| Standard container or cup | Container PC-1 (1000mL) PCL-10B-3 (1000mL) PCL-7B-3(700mL) PC-19R(1000mL) |
||
| Model | |||
| Item | W-77-2S | W-77-21S | W-77-3S |
| Type of feed | Suction | ||
| Fluid nozzle orifice ( mm) |
2.0 | 2.0 | 2.5 |
| Spray distance (mm) |
250 | ||
| Atomizing air pressure (MPa) |
0.34 | ||
| Air consumption (L/min) |
250 | 340 | 325 |
| Fluid output (mL/min) |
345 | 350 | 435 |
| Pattern width (mm) |
255 | 270 | 280 |
| Required air compressor (kW) |
1.5 | 1.5 2.2 |
|
| Mass (g) |
550 | ||
| Standard container or cup | Container PC-1 (1000mL) PCL-10B-3 (1000mL) PCL-7B-3(700mL) PC-19R(1000mL) |
||
| Model | |||
| Item | W-77-1G | W-77-11G | W-77-12G |
| Type of feed | Gravity | ||
| Fluid nozzle orifice ( mm) |
1.5 | 1.5 | 1.5 |
| Spray distance (mm) |
250 | ||
| Atomizing air pressure (MPa) |
0.34 | ||
| Air consumption (L/min) |
180 | 290 | 370 |
| Fluid output (mL/min) |
285 | 285 | 285 |
| Pattern width (mm) |
230 | 290 | 255 |
| Required air compressor (kW) |
0.75 1.5 |
1.5 2.2 |
2.2 3.7 |
| Mass (g) |
550 | ||
| Standard container or cup | Side mount cup PCG-6P-3(600mL) PC-4(400mL) PC-400S-3L(400ml) stainless steel cup with leg |
||
| Model | |||
| Item | W-77-2G | W-77-21G | W-77-3G |
| Type of feed | Gravity | ||
| Fluid nozzle orifice ( mm) |
2.0 | 2.0 | 2.5 |
| Spray distance (mm) |
250 | ||
| Atomizing air pressure (MPa) |
0.34 | ||
| Air consumption (L/min) |
250 | 340 | 325 |
| Fluid output (mL/min) |
390 | 390 | 485 |
| Pattern width (mm) |
290 | 335 | 330 |
| Required air compressor (kW) |
1.5 | 1.5 2.2 |
|
| Mass (g) |
550 | ||
| Standard container or cup | Side mount cup PCG-6P-3(600mL) PC-4(400mL) PC-400S-3L(400ml) stainless steel cup with leg |
||
