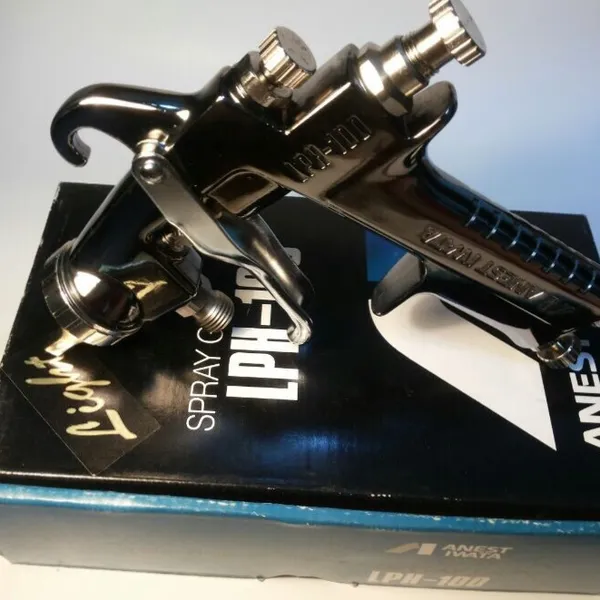

Súng phun sơn Anest Iwata LPH-101-164LVS

Name: Súng phun sơn Anest Iwata LPH-101-164LVS
Brand: No brand
SKU: LPH-101-164LVS
Availability: InStock
Rating: 5 (1 reviews)

Mã sản phẩm:

LPH-101-164LVS

Súng phun sơn Anest iwata LPH-101-164LVS tiết kiệm đến 30% lượng sơn so với các loai súng thông thường khác ,với kimbec 1.4 mm ,sử dụng cốc chứa sơn 600 ml ,1000 ml

Tình trạng:

Còn hàng

Liên hệ

Mô tả
Bình luận

Chi tiết súng phun sơn Anest Iwata LPH-101-164LVS

Model
Item	LPH-101-124LVG	LPH-101-144LVG	LPH-101-164LVG
Previous model	LPH-100-124LVG	LPH-100-144LVG	LPH-100-164LVG
Type of feed	Gravity
Nozzle orifice (mm)	1.2	1.4	1.6
Atomizing air pressure (MPa)	0.1		0.13
Air pressure inside air cap (MPa)	0.05		0.07
Air consumption (L/min)	200		240
Fluid output (mL/min)	80*	130*	100
Pattern width (mm)	200*	220*	220
High atomization
Applied air cap model	LV4
Required air compressor (kW)	1.5 2.2
Mass (g)	295
Application	Automotive refinishing (Touch-ups block paint)

	Model
Item	LPH-101-184LVG	LPH-101-124LVS	LPH-101-144LVS
Previous model	-		LPH-100-144LVS
Type of feed	Gravity	Suction
Nozzle orifice (mm)	1.8	1.2	1.4
Atomizing air pressure (MPa)	0.13	0.1
Air pressure inside air cap (MPa)	0.07	0.05
Air consumption (L/min)	240	200
Fluid output (mL/min)	120	60*	80*
Pattern width (mm)	210	170*	180*
High atomization
Applied air cap model	LV4
Required air compressor (kW)	1.5 2.2
Mass (g)	295
Applications	Automotive refinishing (Touch-ups shading)		Automotive refinishing (Touch-ups Block paint)

	Model
Item	LPH-101-164LVS	LPH-101-082LVP	LPH-101-102LVP
Previous model	LPH-100-164LVS	-
Type of feed	Suction	Pressure
Nozzle orifice (mm)	1.6	0.8	1.0
Atomizing air pressure (MPa)	0.1	0.18
Air pressure inside air cap (MPa)	0.05
Air consumption (L/min)	200	280
Fluid output (mL/min)	95*	100	150
Pattern width (mm)	190*	230	250
High atomization
Applied air cap model	LV4	LV6
Required air compressor (kW)	1.5 2.2
Mass (g)	295
Applications	Automotive refinishing (Touch-ups Block paint)	Automotive refinishing metal, plastic

	Model
Item	LPH-101-081P	LPH-101-101P	LPH-101-122P
Previous model	-		LPH-100-122P
Type of feed	Pressure
Nozzle orifice (mm)	0.8	1	1.2
Atomizing air pressure (MPa)	0.26		0.34
Air pressure inside air cap (MPa)	0.07
Air consumption (L/min)	430		530
Fluid output (mL/min)	100	150	350
Pattern width (mm)	170	200	270
High atomization
Applied air cap model	E1		G2
Required air compressor (kW)	1.5 2.2		2.2 3.7
Mass (g)	295
Applications	Metal, woodwork, resin, painting		Metal,Wood,Plastic

	Model
Item	LPH-101-131P	LPH-101-151P
Previous model	-
Type of feed	Pressure
Nozzle orifice (mm)	1.3	1.5
Atomizing air pressure (MPa)	0.26
Air pressure inside air cap (MPa)	0.07
Air consumption (L/min)	430
Fluid output (mL/min)	200
Pattern width (mm)	280
High atomization
Applied air cap model	E1
Required air compressor (kW)	1.5 2.2
Mass (g)	295
Applications	Metal, woodwork, resin, painting

	Spray distance: 200mm
	Paint viscosity: 20sec/NK-2. * marked ones: 12sec/NK-2
	Fluid nipple G1/4, air nipple G1/4
